FST-SBF-BARE · Aluminum Cylinder Head
Ford SB 289/302/351W Aluminum Bare Cylinder Heads (Pair) 190cc 62cc
In Stock $479.97 / pair
Pair of bare aluminum 20° heads for Small Block Ford Windsor — 190cc intake, 62cc chamber.
- Aluminum bare cylinder head, natural finish, for Ford Small Block 289 / 302 / 351 Windsor
- 190 cc intake runners, 62 cc combustion chambers; rectangular intake / square exhaust ports
- Sized for 2.020 in. intake / 1.600 in. exhaust valves; valve angle 20 deg.
- Bronze valve guides installed; ductile iron seats with 3-angle machined seat
- Bare casting: valves, springs, retainers, locks, seals and rocker hardware NOT included
Online store: shop.fst-sets.com · Buy button embed pending product import
The FST SETS Ford Windsor Bare Cylinder Heads (Pair) are two matching aluminum cylinder heads for Ford Small Block 289 / 302 / 351 Windsor engines, supplied bare in a natural finish. They feature 190 cc intake runners and 62 cc combustion chambers, with perimeter bolt valve cover mounting and accessory bolt holes drilled. Spark plug style: standard. Oiling: through pushrod.
These are bare heads: valves, springs, retainers, locks, valve stem seals, rocker arms, studs, nuts and guideplates are not included. Valve guides are installed and seats are machined, so your shop can select and assemble the valvetrain for the build.
Sold as a pair: price is for two bare cylinder heads.

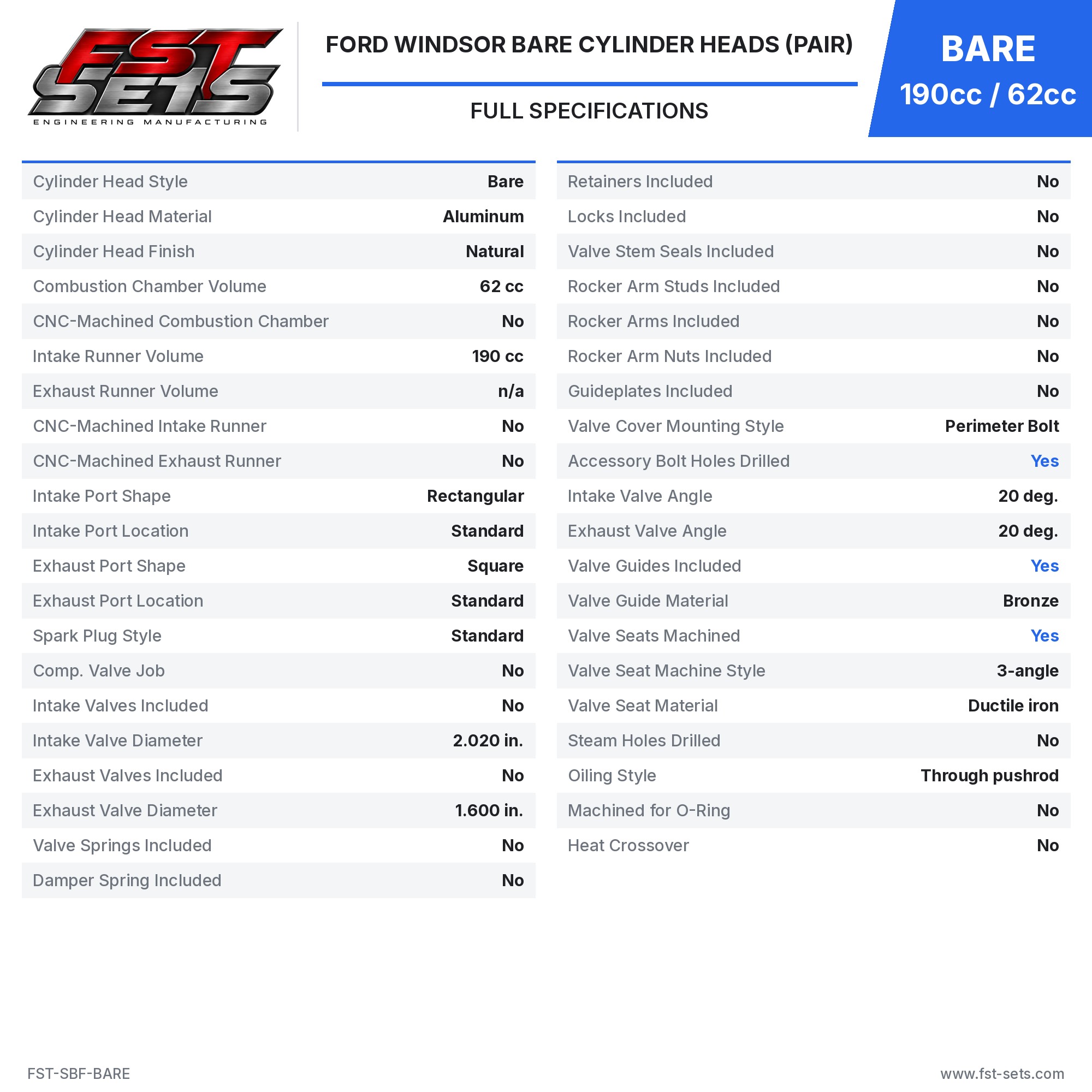

Specifications
| Cylinder Head Style | Bare |
| Cylinder Head Material | Aluminum |
| Cylinder Head Finish | Natural |
| Combustion Chamber Volume (cc) | 62 cc |
| CNC-Machined Combustion Chamber | No |
| Intake Runner Volume (cc) | 190 cc |
| Exhaust Runner Volume (cc) | n/a |
| CNC-Machined Intake Runner | No |
| CNC-Machined Exhaust Runner | No |
| Intake Port Shape | Rectangular |
| Intake Port Location | Standard |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Standard |
| Spark Plug Style | Standard |
| Comp. Valve Job | No |
| Intake Valves Included | No |
| Intake Valve Diameter (in) | 2.020 in. |
| Exhaust Valves Included | No |
| Exhaust Valve Diameter (in) | 1.600 in. |
| Valve Springs Included | No |
| Damper Spring Included | No |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Valve Cover Mounting Style | Perimeter Bolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 20 deg. |
| Exhaust Valve Angle | 20 deg. |
| Valve Guides Included | Yes |
| Valve Guide Material | Bronze |
| Valve Seats Machined | Yes |
| Valve Seat Machine Style | 3-angle |
| Valve Seat Material | Ductile iron |
| Steam Holes Drilled | No |
| Oiling Style | Through pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
