Catalog / Cylinder Heads / FST-SBC-350-BARE
FST-SBC-350-BARE · Aluminum Cylinder Head
Chevy SBC 350 Aluminum Bare Cylinder Head 195cc 64cc Angle Plug
In Stock $179.97
Bare aluminum 23° head for SBC 350 builds — 195cc intake, 64cc chamber.
- Aluminum bare cylinder head, natural finish, for Chevy Small Block 350
- 195 cc intake runners, 64 cc combustion chambers; square intake / square exhaust ports
- Sized for 2.020 in. intake / 1.600 in. exhaust valves; valve angle 23 deg.
- Bronze valve guides installed; ductile iron seats with 3-angle machined seat
- Bare casting: valves, springs, retainers, locks, seals and rocker hardware NOT included
Online store: shop.fst-sets.com · Buy button embed pending product import
The FST SETS SBC 350 Bare Cylinder Head is an aluminum cylinder head for Chevy Small Block 350 engines, supplied bare in a natural finish. It features 195 cc intake runners and 64 cc combustion chambers, with center & perimeter bolt valve cover mounting and accessory bolt holes drilled. Spark plug style: angle. Oiling: through pushrod.
This is a bare head: valves, springs, retainers, locks, valve stem seals, rocker arms, studs, nuts and guideplates are not included. Valve guides are installed and seats are machined, so your shop can select and assemble the valvetrain for the build.

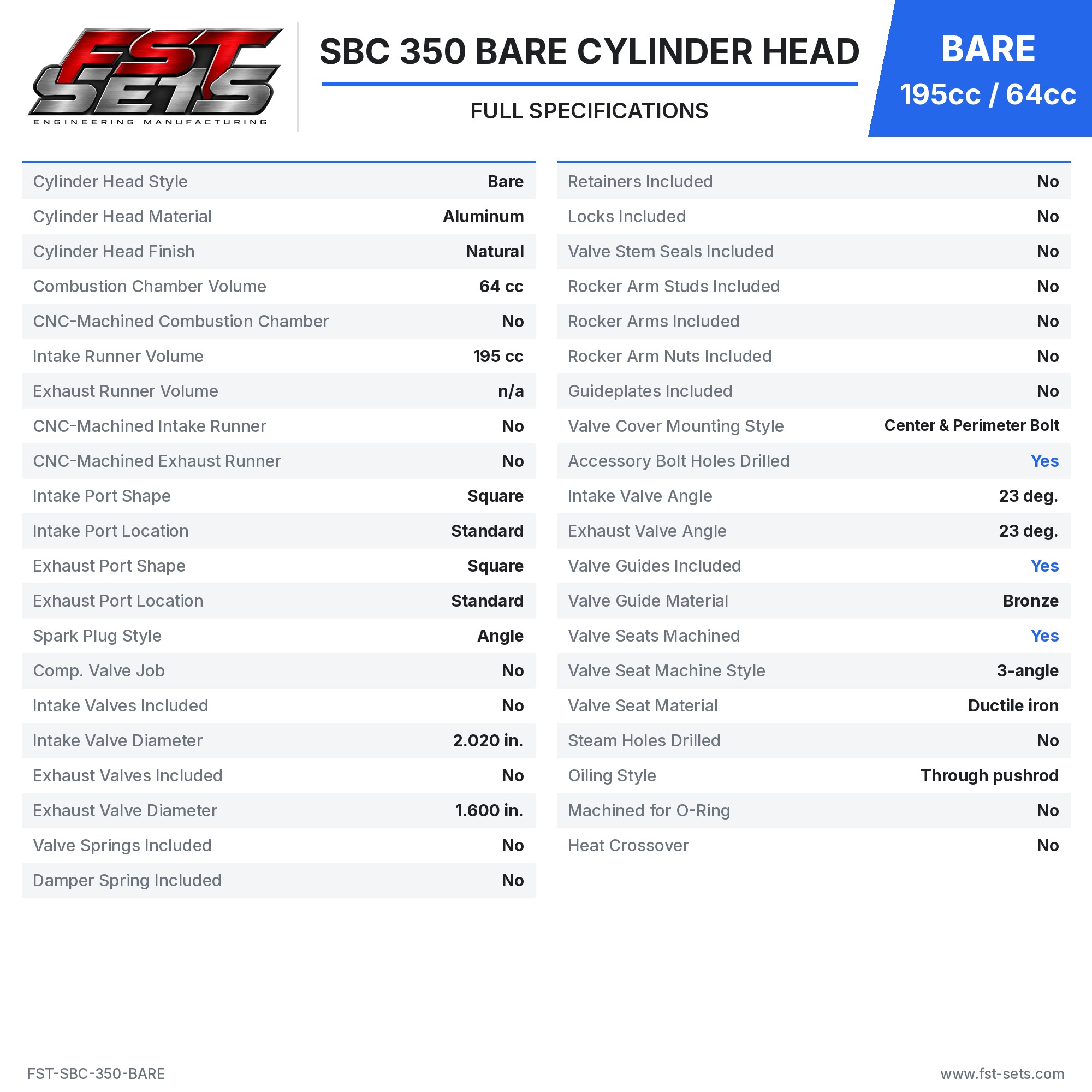

Specifications
| Cylinder Head Style | Bare |
| Cylinder Head Material | Aluminum |
| Cylinder Head Finish | Natural |
| Combustion Chamber Volume (cc) | 64 cc |
| CNC-Machined Combustion Chamber | No |
| Intake Runner Volume (cc) | 195 cc |
| Exhaust Runner Volume (cc) | n/a |
| CNC-Machined Intake Runner | No |
| CNC-Machined Exhaust Runner | No |
| Intake Port Shape | Square |
| Intake Port Location | Standard |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Standard |
| Spark Plug Style | Angle |
| Comp. Valve Job | No |
| Intake Valves Included | No |
| Intake Valve Diameter (in) | 2.020 in. |
| Exhaust Valves Included | No |
| Exhaust Valve Diameter (in) | 1.600 in. |
| Valve Springs Included | No |
| Damper Spring Included | No |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Valve Cover Mounting Style | Center & Perimeter Bolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 23 deg. |
| Exhaust Valve Angle | 23 deg. |
| Valve Guides Included | Yes |
| Valve Guide Material | Bronze |
| Valve Seats Machined | Yes |
| Valve Seat Machine Style | 3-angle |
| Valve Seat Material | Ductile iron |
| Steam Holes Drilled | No |
| Oiling Style | Through pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
